Product Details:
|
| Manufacturer: | Canaan Avalonminer | Also Known As: | Avalon 1126 Pro |
|---|---|---|---|
| Algorithm: | SHA256 | Hashrate: | 60T |
| Power: | 3360W | Size: | 331 X 195 X 292mm |
| High Light: | Canaan Avalonminer 1126 Pro Miner,3360W mining asic machine,Avalonminer 1126 Pro mining asic machine |
||

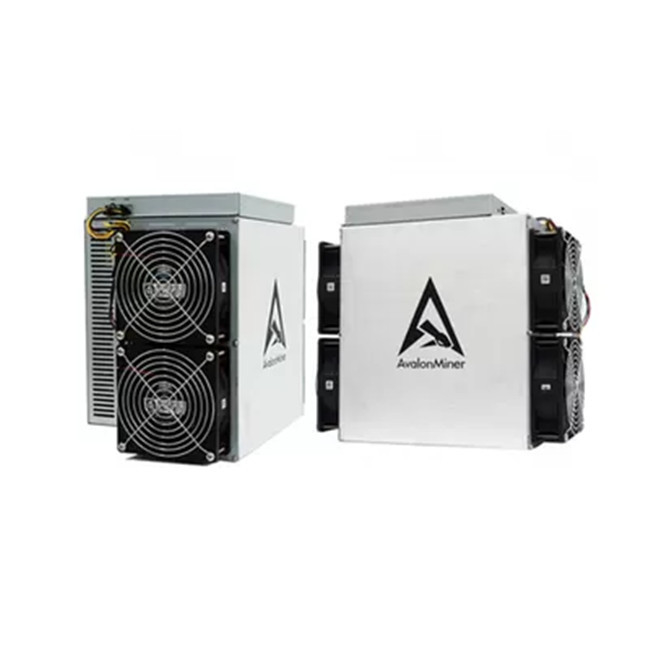

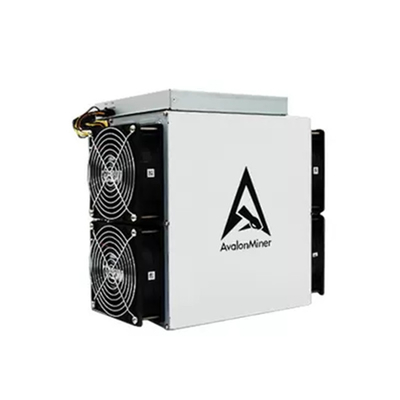

Asic Miner Machine Canaan Avalonminer 1126 pro 68t Avalon 1126 Pro 68th/s BTC Mining machine
| Manufacturer | Canaan |
|---|---|
| Model | AvalonMiner 1126 Pro |
| Also known as | Avalon 1126 Pro S |
| Release | August 2021 |
| Size | 331 x 195 x 292mm |
| Weight | 11200g |
| Chip name | K210 |
| Noise level | 75db |
| Power | 3420W |
| Interface | Ethernet |
| Temperature | 5 - 35 °C |
| Humidity | 5 - 95 % |
According to the official data of Jianan technology, Avalon A1166 pro inherits the classic universal hardware design of the previous generation products (a11 Series), and makes special optimization for the actual deployment environment of the mine: the power supply is integrated in the chassis, supports vertical or flat deployment, and can flexibly adapt to different shelves; The force calculation board is fixed with the box wall by the pull-out track, which is convenient for rapid maintenance or replacement of the force calculation board during mine operation and maintenance. In addition, the fan module is also equipped with a temperature sensor, which is directly connected with the main control chip and can adjust the fan speed in real time according to the temperature of the force calculation board.
Human computer interaction experience also ushered in a significant upgrade. Thanks to the greatly optimized original mine management system, Avalon a1246 can dynamically adapt to the changes of mine environment, ensure the stable operation of mining machines and reduce the impact on the site power grid. At the same time, the new web management background can monitor the status of mining machines at any time, support visual human-computer interaction, automatically remind of abnormal operation, actively shut down in case of sudden faults that seriously affect computing power, and reduce unnecessary power expenditure
1, Domestic default voltage is 220V in China, if your country or farming with different voltage standard, please make clearly about the power requirements before purchasing,
2, If it is necessary to match an adapter according to the real power supply, please buy it on your market.
1, In low power mode, max hashrate should be typ hash rate*103%,
2, Min condition:25℃,Min J/TH, typical hashrate. MAX condition: 40℃,Max J/TH, max hashrate.
3, Caution: wrong input voltage may probably cause miner damaged.
4, Typ condition: min reference power, typical AC input voltage. Max condition:max reference power, min AC input voltage.
5, including PSU size,
6, including PSU weight,
7, max condition: Fan is under max RPM(rotation per minute)
